BenchK Wall Bars 722

Pull-ups, dips and stretches can share one workout space. The BenchK 722 wall bars combine a fixed six-grip steel pull-up bar with a removable dip station, giving you two different ways to work your upper body at home.

Set the dip station at a suitable rung height for your session, then take it off when you want the wall bars clear. Its back support gives you a supported position for exercises such as knee raises. Choose a black or white frame and leave enough room in front for the dip station and your full range of movement.

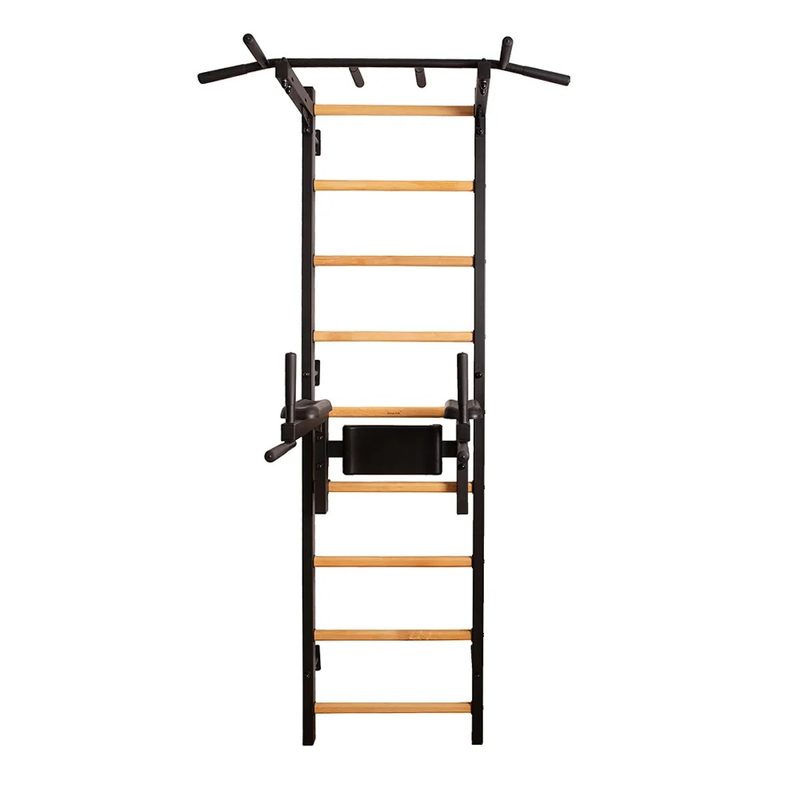

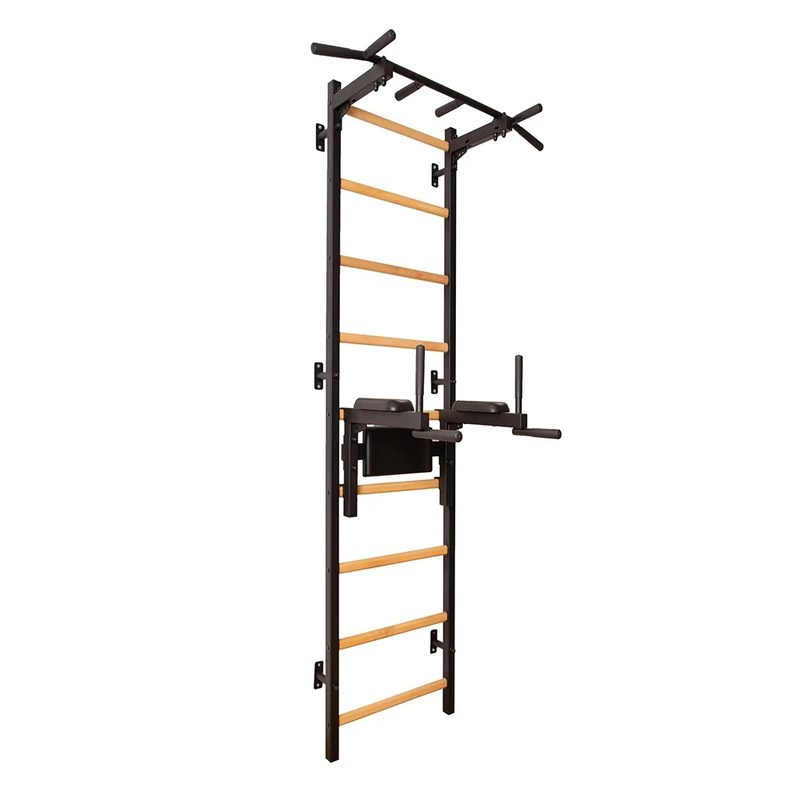

What Comes with the BenchK Wall Bars 722

• Series 7 wall bars with nine beech rungs: Provide the mounting base for your attachments and handholds for stretches.
• PB2 fixed six-grip steel pull-up bar: Offers different hand positions for pulling exercises at the top of the ladder.
• DB1 dip station with back support: Adds dips and supported exercises to your routine; it can be repositioned or removed between sessions.

Sold separately: Workout bench, weights, gymnastics kit and mounting kits are sold separately.

See the BenchK collection for wall bars and accessories to suit your space.

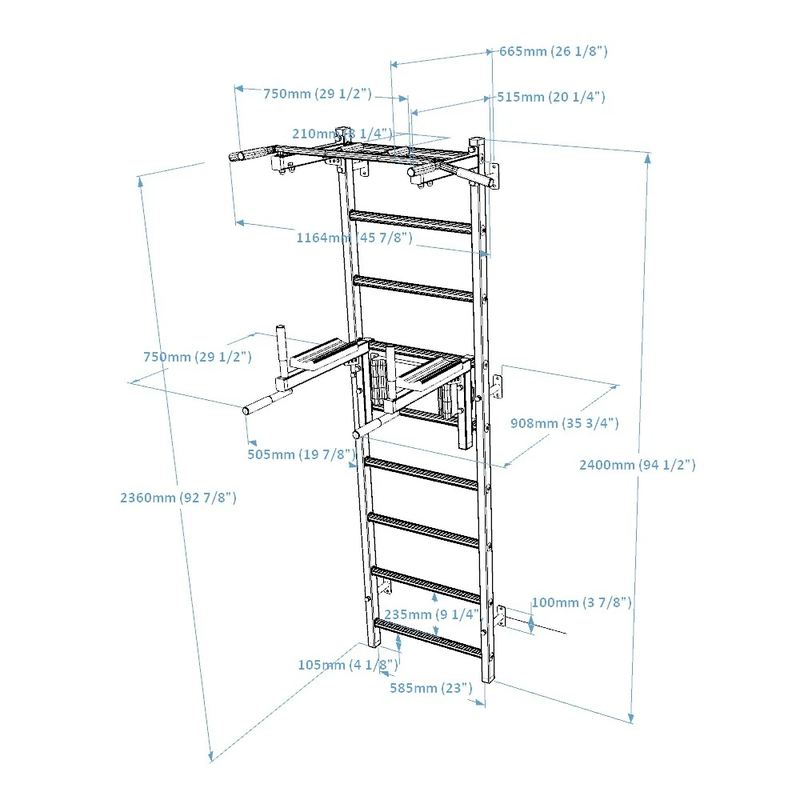

BenchK Wall Bars 722 Dimensions and Materials

• Wall-bar size: 94½ in. high × 26⅜ in. wide.
• Minimum ceiling height: 98½ in.
• Materials and finish: Steel frame with hand-oiled beech rungs. Choose black or white.
• Wall-bar maximum user weight: 330 lb (150 kg).
• PB2 maximum user weight: 330 lb (150 kg).
• PB2 attachment size: About 45⅞ in. wide × 20¼ in. deep (116.4 × 51.5 cm).
• Manufacturer warranty: 10 years on metal components and 2 years on other components, subject to its terms and exclusions.

The steel pull-up bar is wider than the ladder. The attachment measurements describe the component itself, not the full installed distance from the wall or the clear space you need for exercise.

Installing Your BenchK Wall Bars 722

Mount the wall bars to a suitable vertical wall with the frame supported on the floor. Assembly fittings are supplied; structural wall screws and anchors must be selected for your wall and are not supplied. Have a qualified installer confirm the wall structure and fasteners before installation.

• Wood-stud walls: Use the compatible WHB+S8 or WHW+S8 Series 7 wall-holder kit.
• Brick or concrete: For suitable masonry at least 12 cm thick (allow at least 4.73 in.), use the PS12 masonry-anchor kit for direct mounting. A stud-wall holder is not needed for this installation.
• Drywall: Never mount to drywall alone. Mounting kits are sold separately.

Keep the floor in front clear for the full movement of each exercise, with clear space around the equipment. Allow space above and around the pull-up bar for safe use. Leave additional room for the dip station.

Using Your BenchK Wall Bars 722 Safely

Use the equipment one person at a time. It is not suitable for kids under 3, and kids ages 3–14 need adult supervision. Follow the assembly and safety instructions for the wall bars and every attachment, including each separate load limit. A higher frame rating does not increase an accessory’s capacity.

For home training and supervised commercial settings such as studios and schools, the installation, inspection and use must meet the applicable instructions.

BenchK Wall Bars 722 Assembly and Safety Guides

• DB1 dip-station guide
• Series 7 wall-bar assembly guide
• PB2 pull-up bar guide

Ready for pull-ups and dips at home? Choose your finish and add the BenchK 722 wall bars to your cart.
